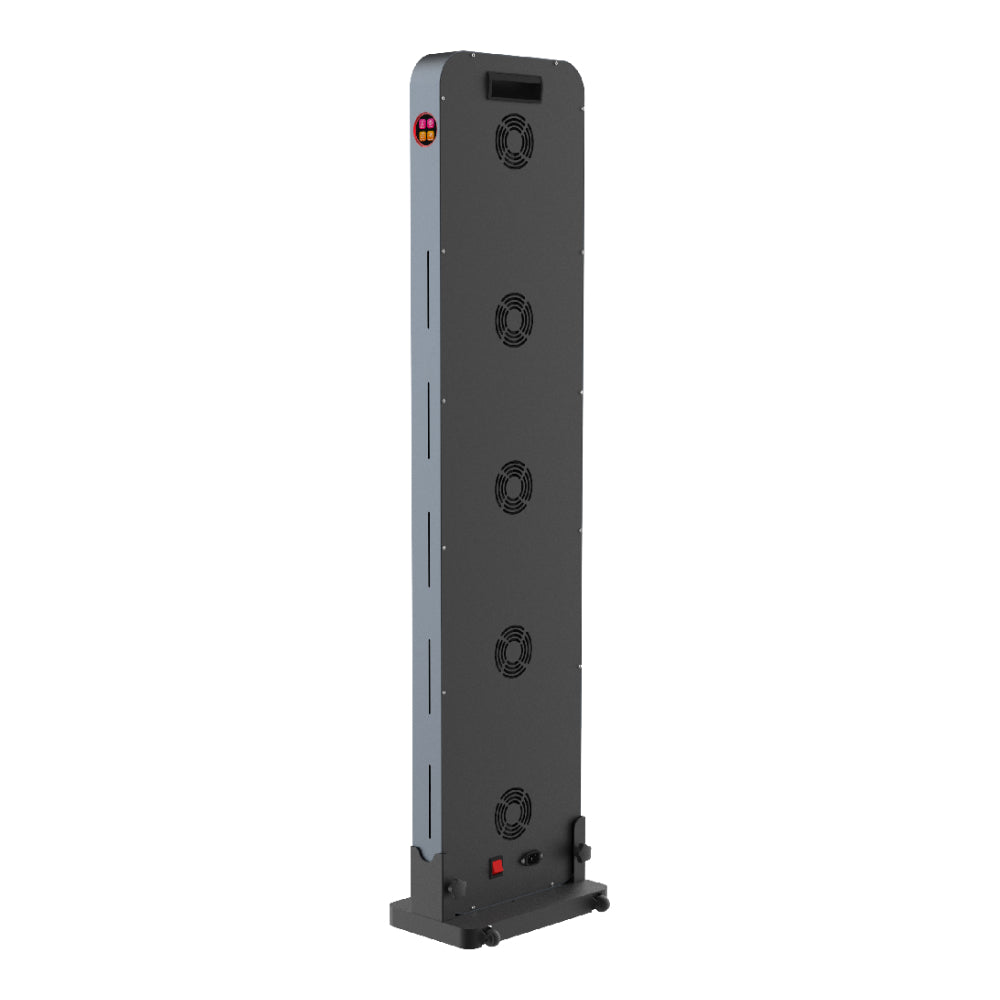

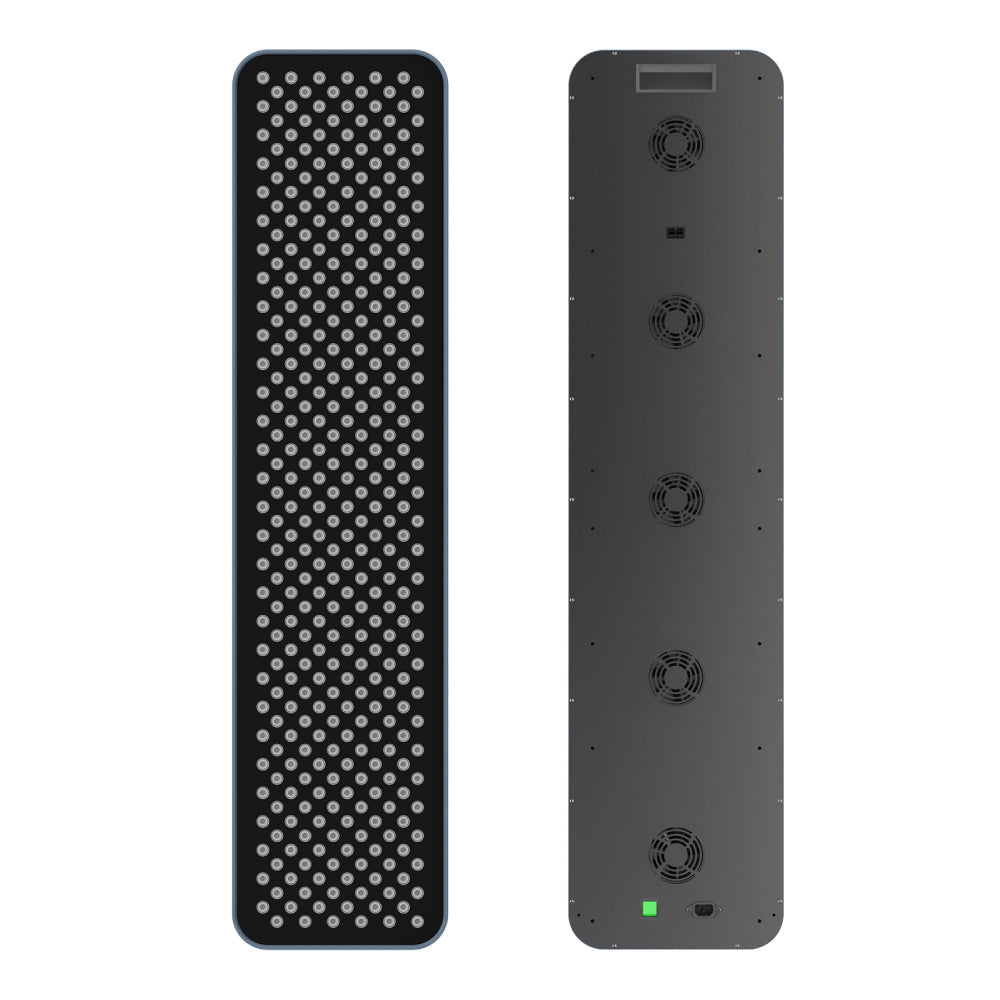

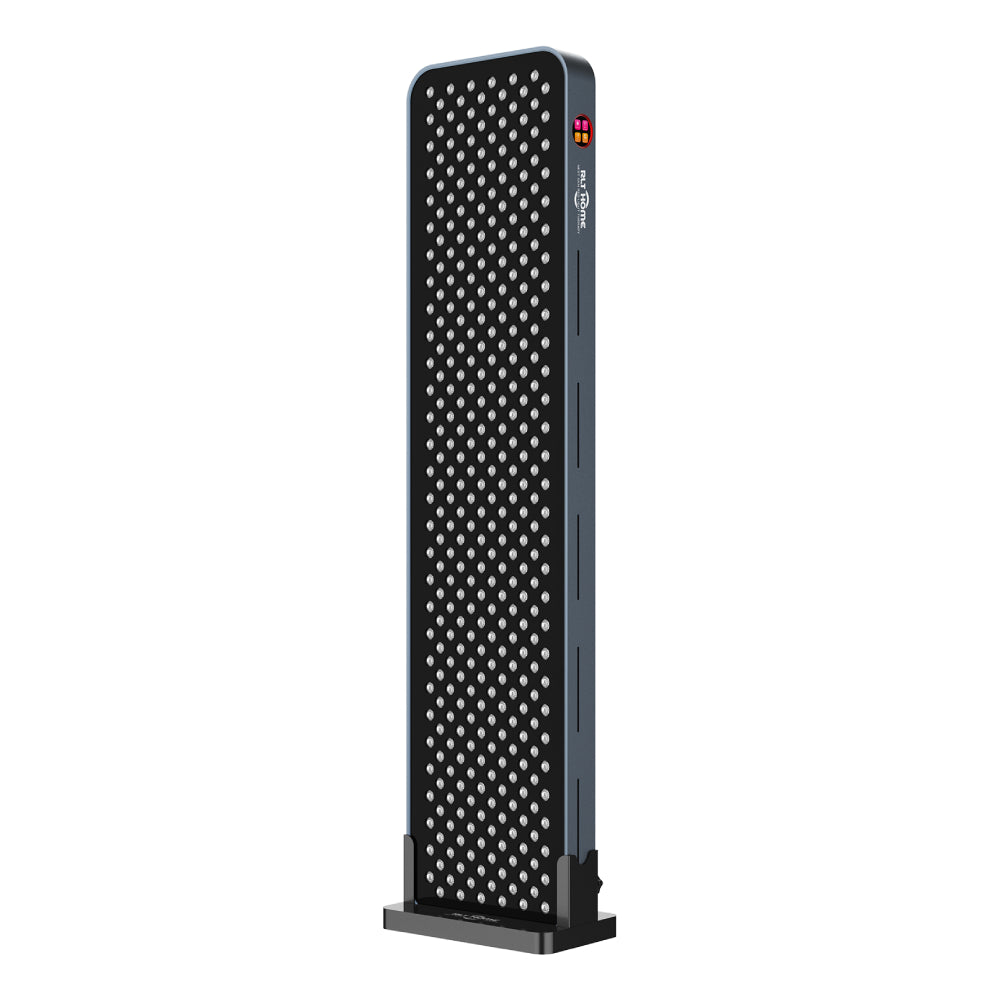

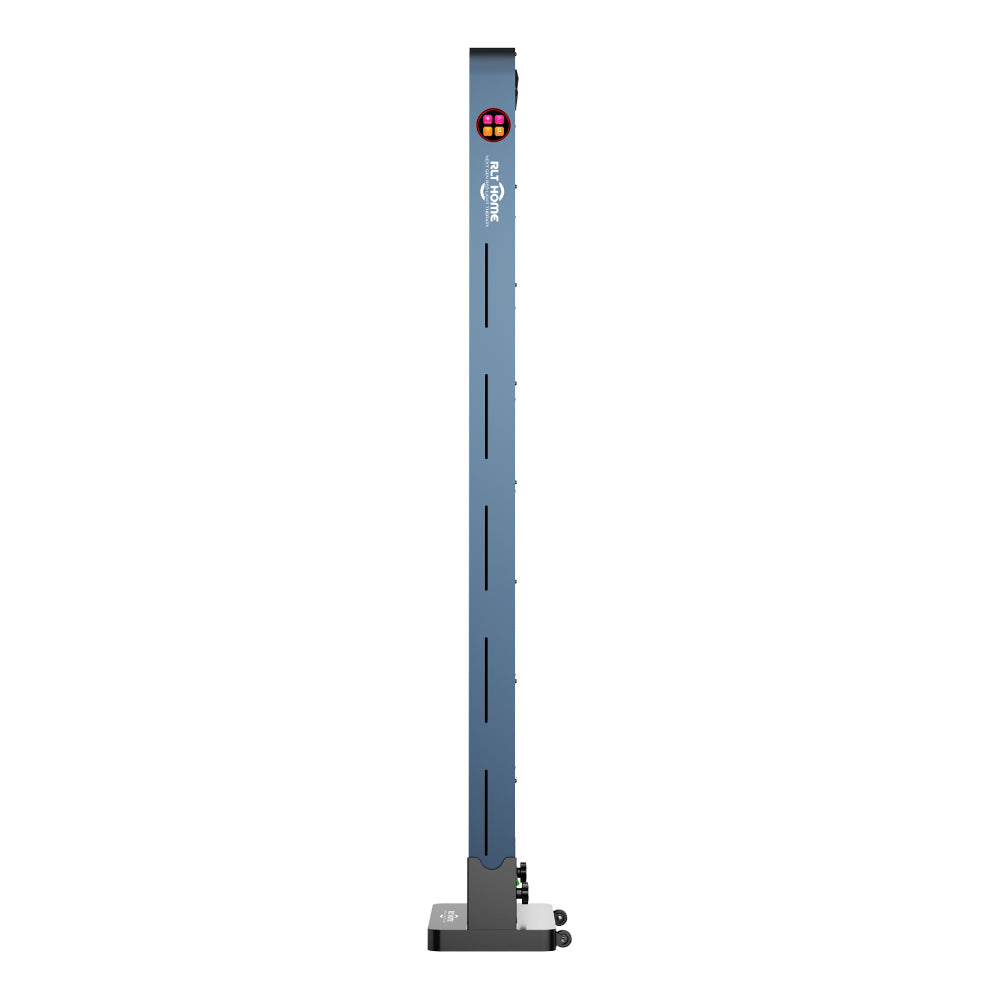

The Total Spectrum MAX is a powerful full-body red light therapy panel featuring 360 high-performance LEDs and seven clinically researched wavelengths. Designed to support recovery, skin health, circulation, relaxation, and overall wellness, it delivers professional-grade light therapy in a sleek, space-saving design.
Ideal for larger treatment areas such as the torso, back, legs, and abdomen, the MAX combines advanced wavelength technology, customizable settings, and industry-leading performance to help you achieve your wellness goals from the comfort of home.
Whether you’re focused on recovery, healthy aging, pain relief, or optimizing daily wellness, the Total Spectrum MAX delivers versatile, effective light therapy in one premium system.
Specifications
LED Configuration
• Total LEDs: 360

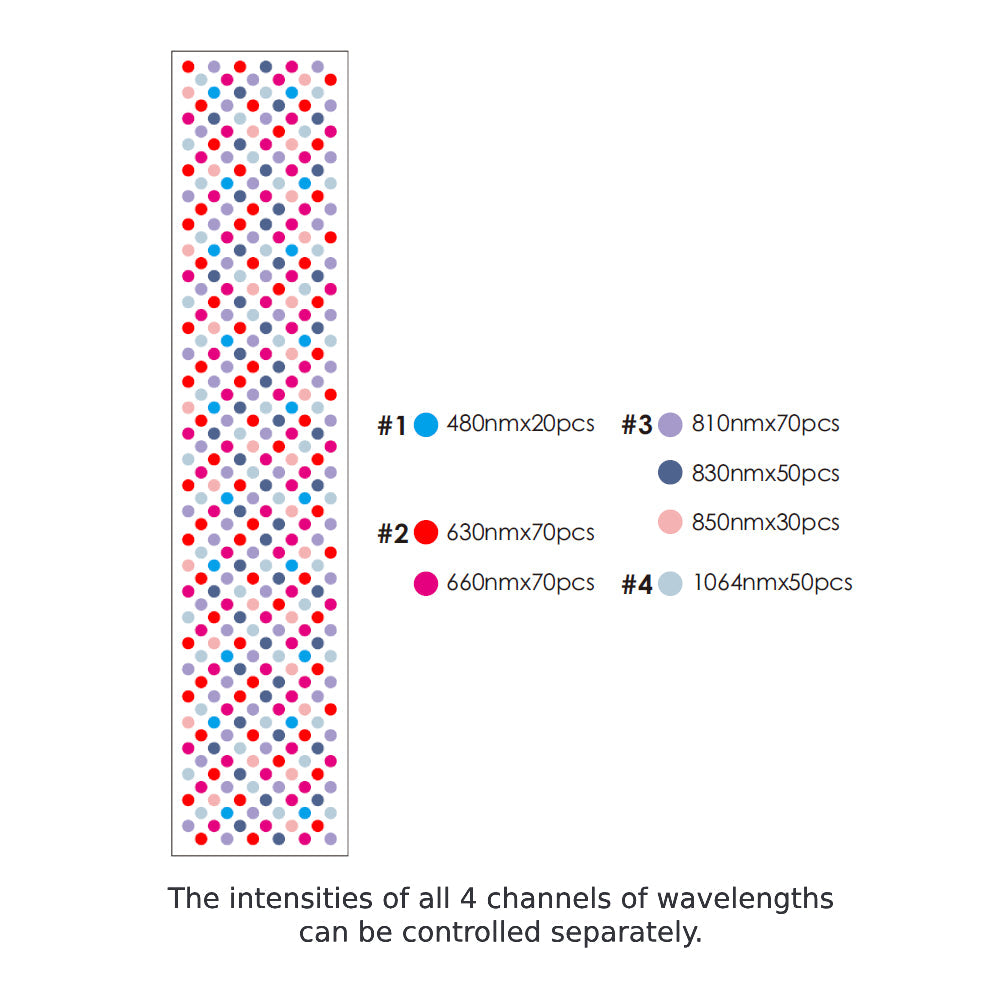

Wavelength Composition
• 480nm (Blue Light) – 6% density
Targets surface-level skin concerns and helps neutralize acne-causing bacteria.
• 630nm & 660nm (Red Light) – 19% density each
Supports collagen production, wound healing, skin rejuvenation, and healthy aging.
• 810nm, 830nm & 850nm (Near Infrared) – 19%, 14%, and 9% densities respectively
Penetrates deeper to support pain relief, inflammation reduction, muscle recovery, joint health, and relaxation.
• 1064nm (Infrared) – 14% density
Provides deep tissue penetration to support recovery, musculoskeletal wellness, and overall performance.
Irradiance
• 172 mW/cm² at 8 inches
• 100.53 mW/cm² at 6 inches
Performance Features
• Adjustable pulsing frequency: 0–5,000 Hz
• 9 pre-programmed treatment modes
• Custom channel control
• Touchscreen interface
• Remote control included
Safety Features
• Flicker-free operation
• Ultra-low EMF design (approximately 0.0 μT at 6 inches or greater)
Electrical
• Voltage: AC 100–240V
• Worldwide compatibility
Beam Angle
• 30° beam angle
LED Lifespan
• Up to 100,000 hours
Construction
• Housing Material: Aluminum
Certifications
-
RoHS Certified:
RoHS stands for Restriction of Hazardous Substances. This certification ensures that our products have limited or no hazardous materials that are harmful to the environment and users. In simpler terms, these certificates ensure that our products are safe, environmentally friendly, and compliant with both European and U.S. standards.
-
CE Certified: We have two CE certificates for our LED lights. These certificates confirm:
- Compliance with the European Low Voltage Directive, ensuring the product's electrical safety.
- Compliance with the Electromagnetic Compatibility Directive, ensuring the product won't interfere with other electronic devices or cause electromagnetic disturbances.

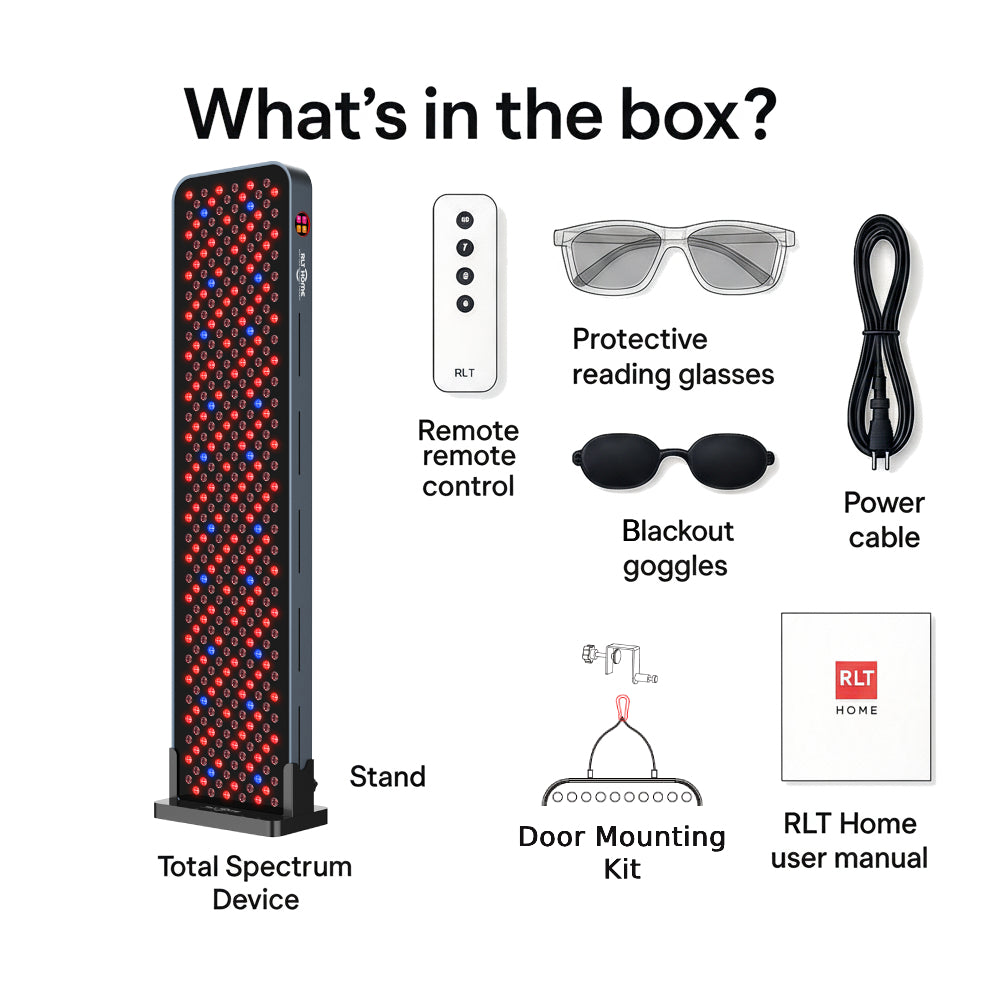

What's Included
What's Included
• Total Spectrum MAX Device

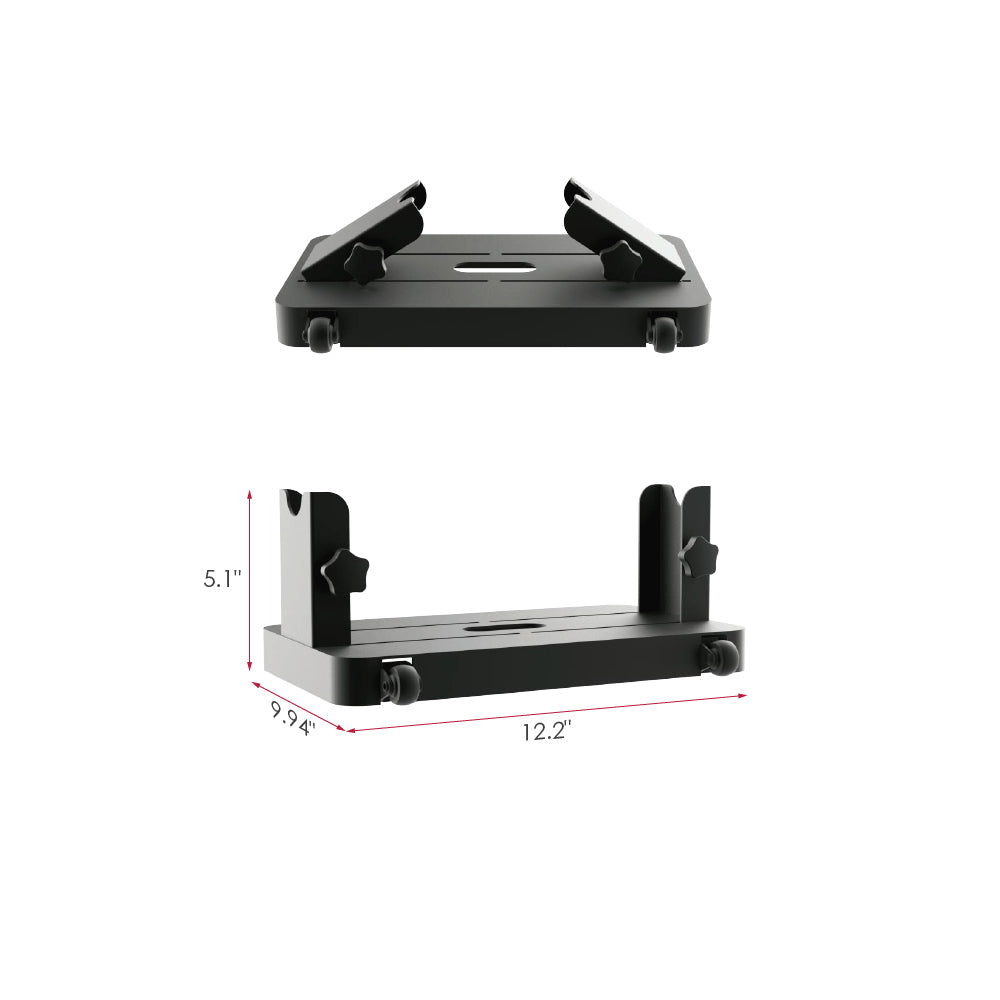

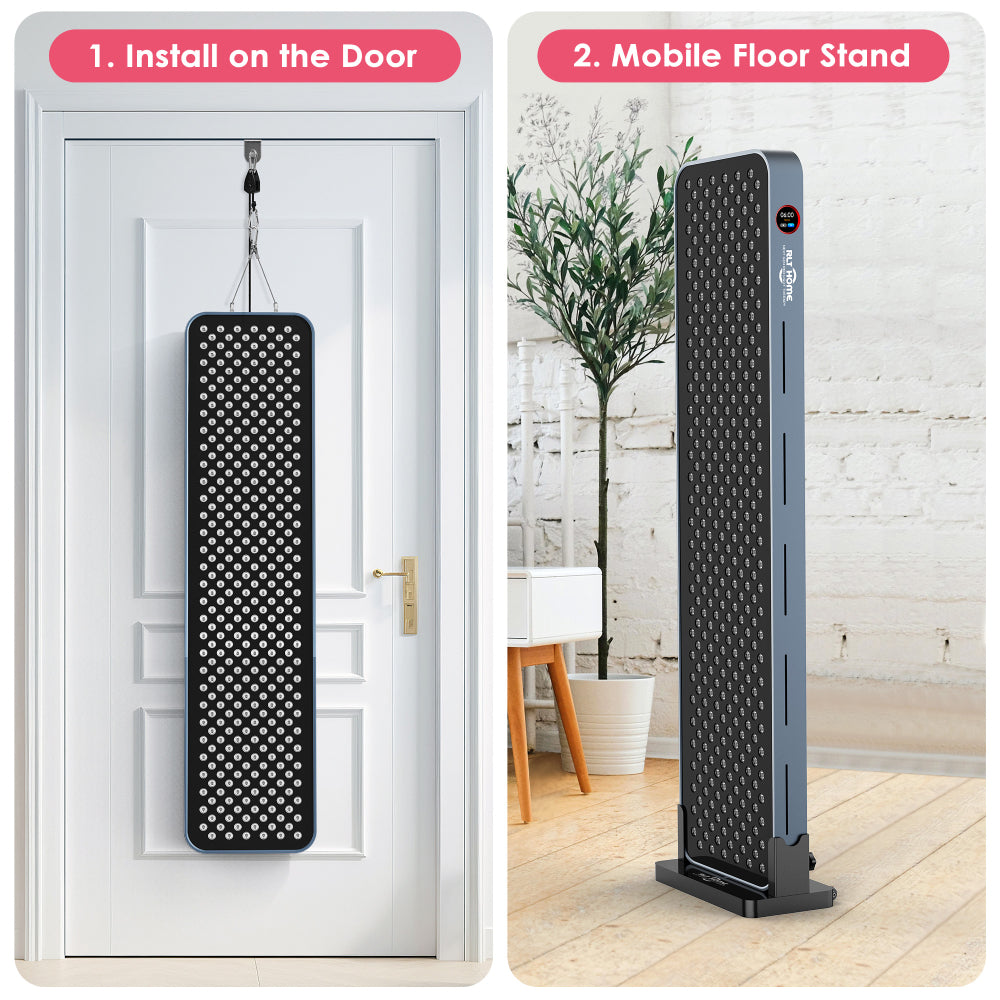

• Adjustable Stand
• Remote Control
• Protective Reading Glasses
• Blackout Goggles
• RLT Home User Manual
• Power Cable
Dimensions
Dimensions

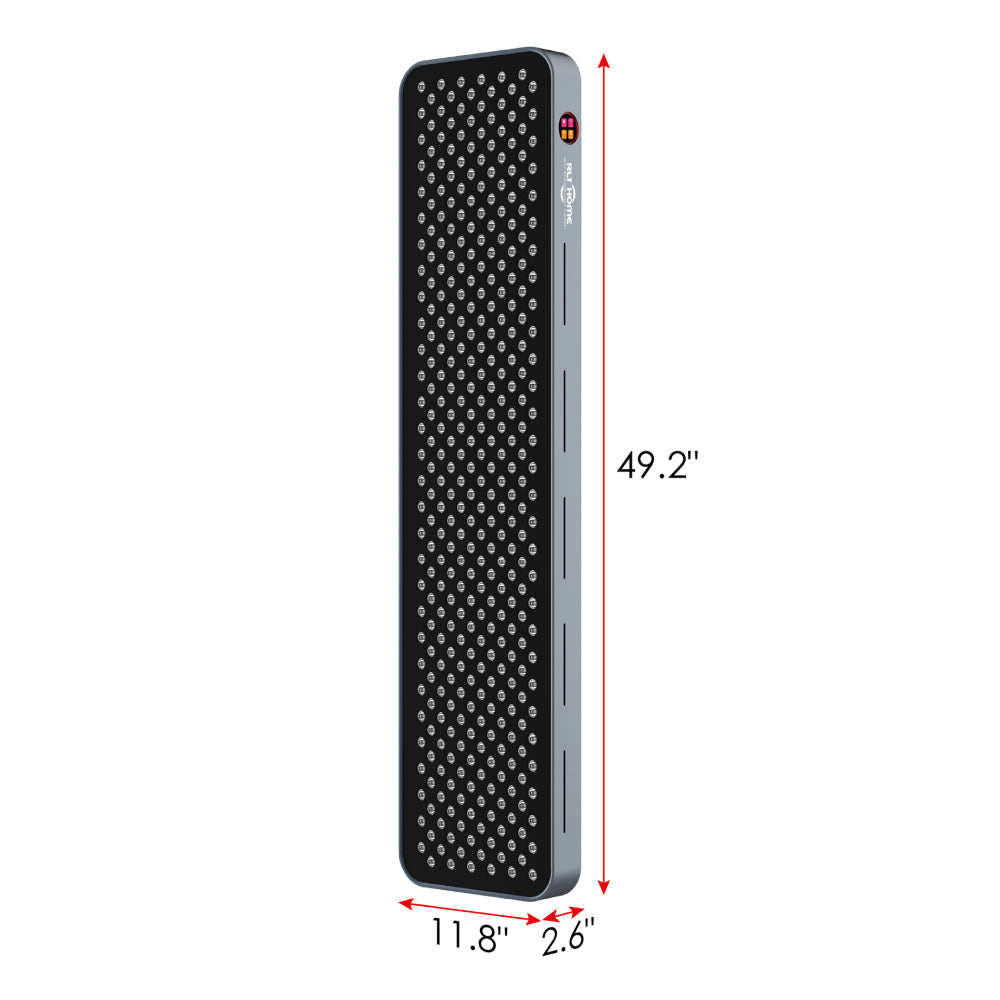

• Device Size: 1250 x 300 x 65 mm (49.2” x 11.8” x 2.6”)
• Device Weight: 14 kg (30.8 lbs)
• Shipping Box Size: 1325 x 380 x 180 mm (52” x 15” x 7”)
• Shipping Weight: 17.5 kg (38.6 lbs)
• Housing Material: Aluminum
Warranty
Warranty
• Includes a 3-Year Manufacturer Warranty.
• Warranty coverage begins on the date of delivery.
• Covers defects in materials and workmanship under normal residential use.
• Please refer to the manufacturer’s warranty documentation for complete coverage details.
Shipping
Shipping
• Free shipping within the contiguous United States.
• Orders are carefully packaged to help ensure safe delivery.
• Tracking information will be provided once your order has shipped.
• Delivery times may vary based on destination and carrier availability.
